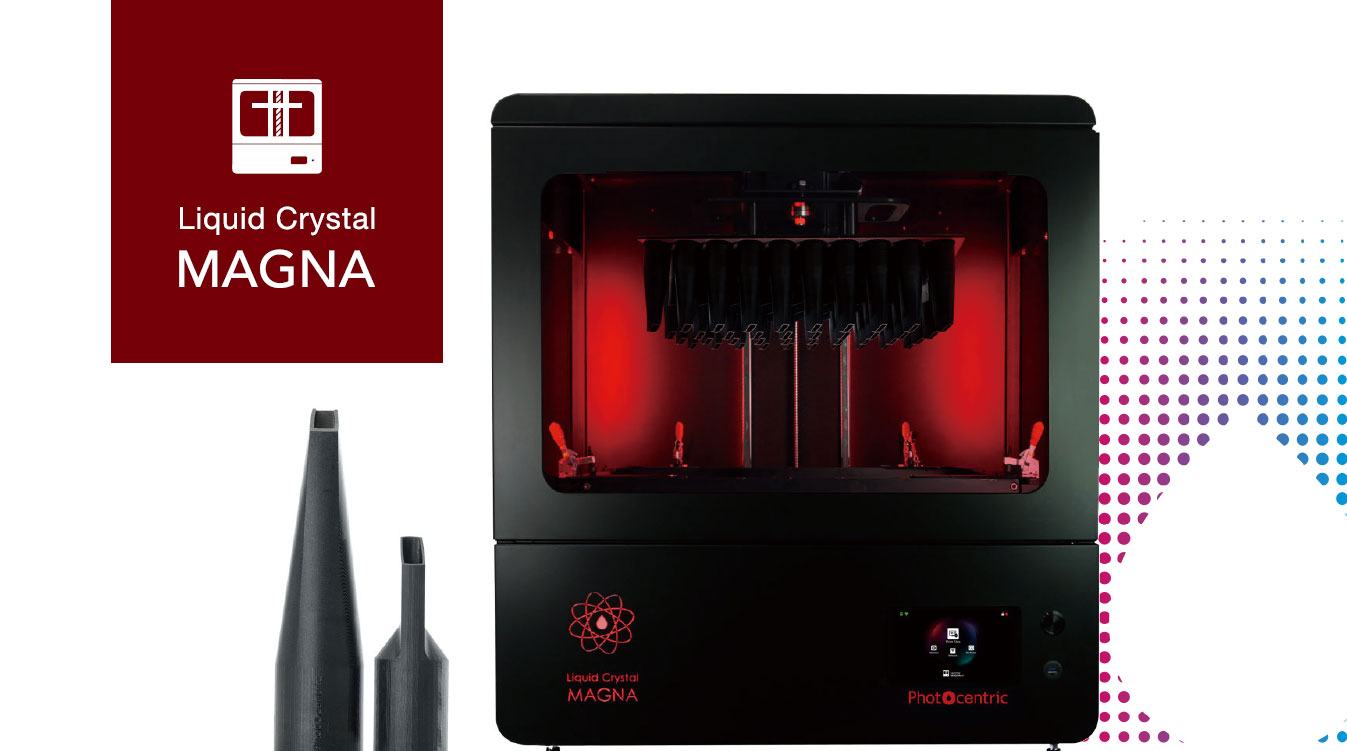

Liquid Crystal Magna
LC Magna 3D 프린터는 제품 설계를 강화하여 시제품 제작에서 생산까지 몇 시간 만에 전환할 수 있습니다.
포토센트릭 LC Magna는 원래의 3D 프린터의 성공을 기반으로 합니다. 다양한 산업 및 응용 분야에 적합한 빠르고 정확한 인쇄물을제공합니다.
Technology : Daylight
Build Volume : 510 x 280 x 350 mm (21.1 x 11 x 13.8")
Print Speed : 16mm per hour (0.62" per hour)
Performance
Build volume 510 x 280 x 350mm
Print layer 25, 50 and 100µm
LCD screen 4K 3840 x 2160 px
Print speed 16mm per hour
Cure speed 2 seconds per layer at 100µm
Light output wavelength 460nm
User interface and operation
Touchscreen 7-inch
Control system lntergrated control system
Power input 110-240 VAC
Software
Photocentric Studio, Photocentric Additive
(Free perpetual Studio licence included with printer. Photocentric Additive purchased separatley)
Materials
Daylight Magna, BASF Ultracur3D®
Connectivity
Wi-Fi, Ethernet, USB 3.0
Product specification
Dimensions 852(w) x 641 (d) x 900(h) mmm
Weight 110kg
3D Printers
Our resin 3D printers deliver speed, volume and cost savings
From the inventors of LCD 3D Printing, the Photocentric LC Opus desktop 3D printer delivers fast, highly accurate prints suitable for a huge variety of industries and applications. With its rugged construction, this UV 3D printer has been designed to provide reliable and repeatable performance.
Liquid Crystal OpusFrom the inventors of LCD 3D Printing, the Photocentric LC Opus desktop 3D printer delivers fast, highly accurate prints suitable for a huge variety of industries and applications. With its rugged construction, this UV 3D printer has been designed to provide reliable and repeatable performance.
The LC Magna 3D printer supercharges product design, en- abling you to move from prototyping to production in hours. The Photocentric LC Magna builds on the success of the original 3D printer. Delivering fast, highly accurate prints suitable for a huge variety of industries and applications.
Liquid Crystal MagnaThe LC Magna 3D printer supercharges product design, en- abling you to move from prototyping to production in hours. The Photocentric LC Magna builds on the success of the original 3D printer. Delivering fast, highly accurate prints suitable for a huge variety of industries and applications.
The Liquid Crystal Titan LCD 3D printer is built for large format printing of production parts with a massive 700 x 395 x 1200 mm build volume. The size of this printer is sup- ported by the speed of the machine. lt is a must for a wide range of industries, applications and is currently in use in our print farm.
Liquid Crystal TitanThe Liquid Crystal Titan LCD 3D printer is built for large format printing of production parts with a massive 700 x 395 x 1200 mm build volume. The size of this printer is sup- ported by the speed of the machine. lt is a must for a wide range of industries, applications and is currently in use in our print farm.
Technology : UVa
Build Volume : 310 x 174 x 220 mm (12.2 x 6.9 x 7.9")
Print Speed : 18mm per hour (0.71 " per hour)
Technology : Daylight
Build Volume : 510 x 280 x 350 mm (21.1 x 11 x 13.8")
Print Speed : 16mm per hour (0.62" per hour)
Technology : Daylight
Build Volume : 700 x 395 x 1200 mm (27.5 x 15.5 x 47.2")
Print Speed : 16mm per hour (0.62" per hour)
Spec
| Compare 3D Printers | LC Opus | LC Magna | LC Titan |
Performance | |||
Build volume Print layer thickness LCD screen Print speed Cure speed Light output wavelength | 310x174x220mm 25, 50 and 1 OOμm 1411 monochrome 4K 18mm per hour 2 seconds per layer at 50μm 405nm | 9510 x 280 x 350mm 25, 50 and 100µm 4K 3840 x 2160 px 16mm per hour 2 seconds per layer at 100µm 460nm | 700 x 395 x 1200mm 100-350µm SK 7660 x 4320 px 16mm per hour 2 seconds per layer at 1 OOµm 460nm |
| Materials | UV LCD, UV OLP, open source | Daylight Magna, BASF Ultracur3D® | Daylight Magna, BASF Ultracur3D® Resin autofill system |
| Connectivity | Wi-Fi, Ethernet, USB 3.0 | Wi-Fi, Ethernet, USB 3.0 | Wi-Fi, Ethernet, USB 3.0 |
| Software | Photocentric Studio (Free perpetual licence included with printer) | Photocentric Studio, Photocentric Additive (Free perpetual Studio licence included with printer. Photocentric Additive purchased separatley) | Photocentric Studio, Photocentric Additive (Free perpetual Studio licence included with printer. Photocentric Additive purchased separatley) |
| User interface and operation | |||
| Touchscreen | 7-inch | ||
| Control system | lntergrated control system | ||
| Power input | 110-240 VAC | ||
| Product specification | |||
| Dimensions | 415(w) x 475(d) x 605(h) mm | 852(w) x 641 (d) x 900(h) mm | 1544(w) x 926(d) x 2137(h) mm |
| Weight | 38kg | 110kg | 510kg |
