Liquid Crystal Titan
Liquid Crystal Titan LCD 30 프린터는 대량 빌드 볼륨으로 생산 부품의 대형 포맷인쇄를 워해 제작되었습니다.
01 프린터의 크기는 기계의 속도에 의해 지원됩니다. 이것은 광범위한 산업과 응용 분야에서 팔수적인 것이며 현재 우리의 프린팅 시장에서 사용되고 있습니다.
Technology : Daylight
Build Volume : 700 x 395 x 1200 mm (27.5 x 15.5 x 47.2")
Print Speed : 16mm per hour (0.62" per hour)
Performance
Build volume 700 x 395 x 1200mm
Print layer 100-350µm
LCD screen SK 7660 x 4320 px
Print speed 16mm per hour
Cure speed 2 seconds per layer at 100µm
Light output wavelength 460nm
User interface and operation
Touchscreen 7-inch
Control system lntergrated control system
Power input 110-240 VAC
Software
Photocentric Studio, Photocentric Additive
(Free perpetual Studio licence included with printer. Photocentric Additive purchased separatley)
Materials
Daylight Magna, BASF Ultracur3D® Resin autofill system
Connectivity
Wi-Fi, Ethernet, USB 3.0
Product specification
Dimensions 1544(w) x 926(d) x 2137(h) mm
Weight 510kg
3D Printers
Our resin 3D printers deliver speed, volume and cost savings
From the inventors of LCD 3D Printing, the Photocentric LC Opus desktop 3D printer delivers fast, highly accurate prints suitable for a huge variety of industries and applications. With its rugged construction, this UV 3D printer has been designed to provide reliable and repeatable performance.
Liquid Crystal OpusFrom the inventors of LCD 3D Printing, the Photocentric LC Opus desktop 3D printer delivers fast, highly accurate prints suitable for a huge variety of industries and applications. With its rugged construction, this UV 3D printer has been designed to provide reliable and repeatable performance.
The LC Magna 3D printer supercharges product design, en- abling you to move from prototyping to production in hours. The Photocentric LC Magna builds on the success of the original 3D printer. Delivering fast, highly accurate prints suitable for a huge variety of industries and applications.
Liquid Crystal MagnaThe LC Magna 3D printer supercharges product design, en- abling you to move from prototyping to production in hours. The Photocentric LC Magna builds on the success of the original 3D printer. Delivering fast, highly accurate prints suitable for a huge variety of industries and applications.

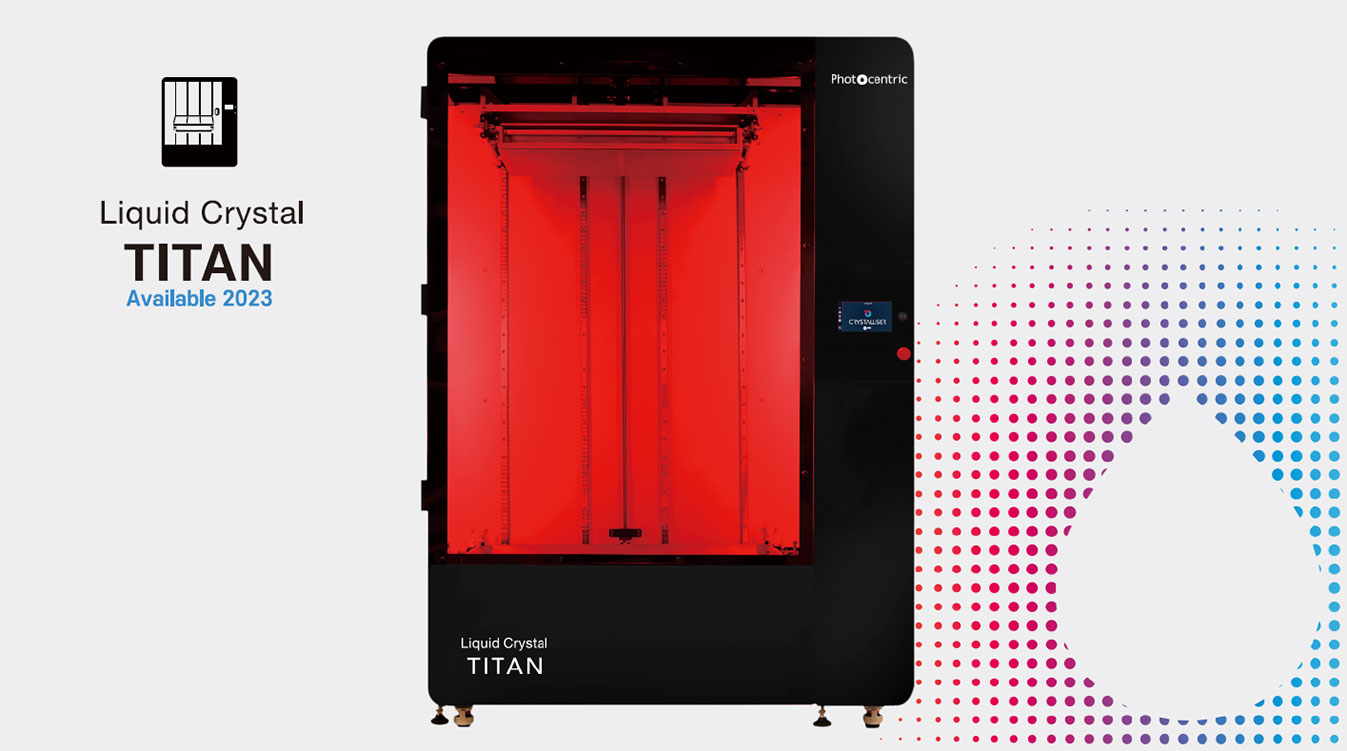

The Liquid Crystal Titan LCD 3D printer is built for large format printing of production parts with a massive 700 x 395 x 1200 mm build volume. The size of this printer is sup- ported by the speed of the machine. lt is a must for a wide range of industries, applications and is currently in use in our print farm.
Liquid Crystal TitanThe Liquid Crystal Titan LCD 3D printer is built for large format printing of production parts with a massive 700 x 395 x 1200 mm build volume. The size of this printer is sup- ported by the speed of the machine. lt is a must for a wide range of industries, applications and is currently in use in our print farm.
Technology : UVa
Build Volume : 310 x 174 x 220 mm (12.2 x 6.9 x 7.9")
Print Speed : 18mm per hour (0.71 " per hour)
Technology : Daylight
Build Volume : 510 x 280 x 350 mm (21.1 x 11 x 13.8")
Print Speed : 16mm per hour (0.62" per hour)
Technology : Daylight
Build Volume : 700 x 395 x 1200 mm (27.5 x 15.5 x 47.2")
Print Speed : 16mm per hour (0.62" per hour)
Spec
| Compare 3D Printers | LC Opus | LC Magna | LC Titan |
Performance | |||
Build volume Print layer thickness LCD screen Print speed Cure speed Light output wavelength | 310x174x220mm 25, 50 and 1 OOμm 1411 monochrome 4K 18mm per hour 2 seconds per layer at 50μm 405nm | 9510 x 280 x 350mm 25, 50 and 100µm 4K 3840 x 2160 px 16mm per hour 2 seconds per layer at 100µm 460nm | 700 x 395 x 1200mm 100-350µm SK 7660 x 4320 px 16mm per hour 2 seconds per layer at 1 OOµm 460nm |
| Materials | UV LCD, UV OLP, open source | Daylight Magna, BASF Ultracur3D® | Daylight Magna, BASF Ultracur3D® Resin autofill system |
| Connectivity | Wi-Fi, Ethernet, USB 3.0 | Wi-Fi, Ethernet, USB 3.0 | Wi-Fi, Ethernet, USB 3.0 |
| Software | Photocentric Studio (Free perpetual licence included with printer) | Photocentric Studio, Photocentric Additive (Free perpetual Studio licence included with printer. Photocentric Additive purchased separatley) | Photocentric Studio, Photocentric Additive (Free perpetual Studio licence included with printer. Photocentric Additive purchased separatley) |
| User interface and operation | |||
| Touchscreen | 7-inch | ||
| Control system | lntergrated control system | ||
| Power input | 110-240 VAC | ||
| Product specification | |||
| Dimensions | 415(w) x 475(d) x 605(h) mm | 852(w) x 641 (d) x 900(h) mm | 1544(w) x 926(d) x 2137(h) mm |
| Weight | 38kg | 110kg | 510kg |
