Velox Speed Shot
SPEED SHOT velox

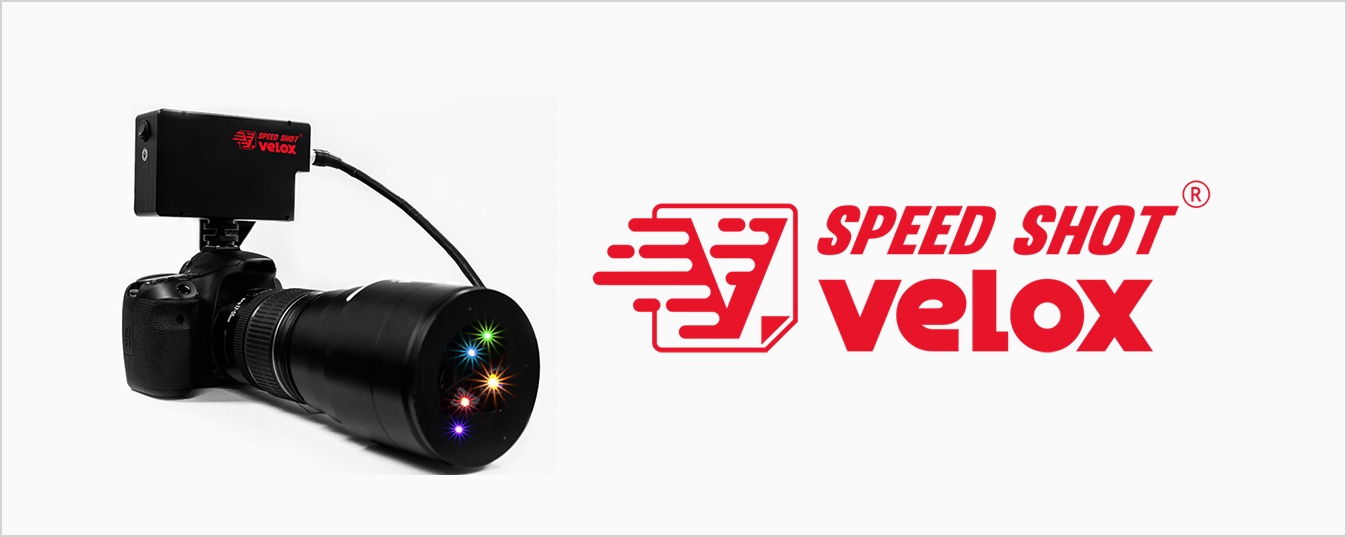

Velox-Speed Shot is a high-speed fingerprint photographing system at crime scene.
All –In-One System includes tripod, ruler, and lens.
High Speed & Accuracy
Velox-Speed Shot can take photograph fingerprint in
just 1 minutes. So this system is more effective than previous fingerprinting methods
All-In-One
Velox-Speed Shot is all-in-one system that includes a tripod, ruler, and lens to adjust the darkroom, various light sources, and the angle of light
User Friendly

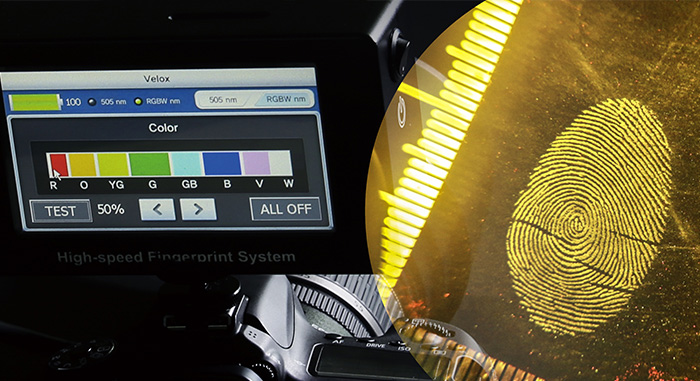

Velox is a system mounted on a DSLR camera that is easy to assemble and allows users to manipulate light sources and brightness with a touch screen

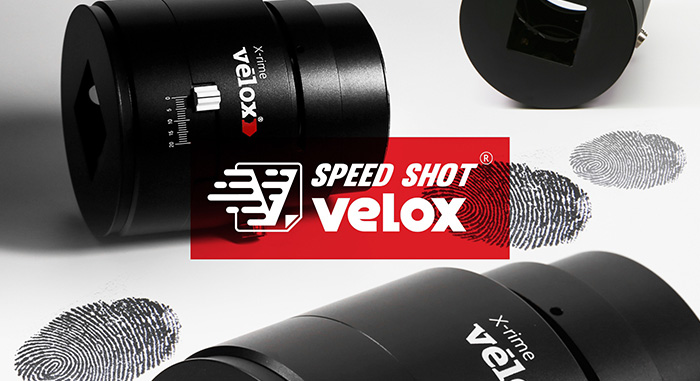

Velox–Co Axial Shot
Co-Axial shot is for the visualization and photography of impression evidence on all reflective surfaces (such as glass, polished metal & plastics, varnished wood, and glossy paper) using standard photographic equipment and techniques
Spec
| Sensor Controller | Main Body(sensor) | ||
Display | 4.3in TFT Wide 32Bit RISC ARM920T-266MHz CPU 64MB RAM | Light source | RGBW + 505nm, 48LED arrays |
| Widows CE5.0 OS | LED lighting control | Cylinderical Cover | 110φ, Blocking external light, scale (Fluorescent, Normal) inside |
| Battery | Rated voltage 5V / 5,000mA / lasts 6 hours | Angle adjustor | Adjustable light source angle 0 ~ 15℃ |
| Weight | 500g | Optical part | Compound lens, Shortpass filter, Releasable Orange filter |
| Dimensions | 120 x 70 x 50mm (L x W x H) | Weight | 500g |
| Operationg temperature | 10 to 35℃ | Dimensions | 110φ x 90mm (D x H) |
